Selection guide of dissolved oxygen electrodes
Release Time
2023-10-09 13:48
The dissolved oxygen electrodes are suitable for different meters.

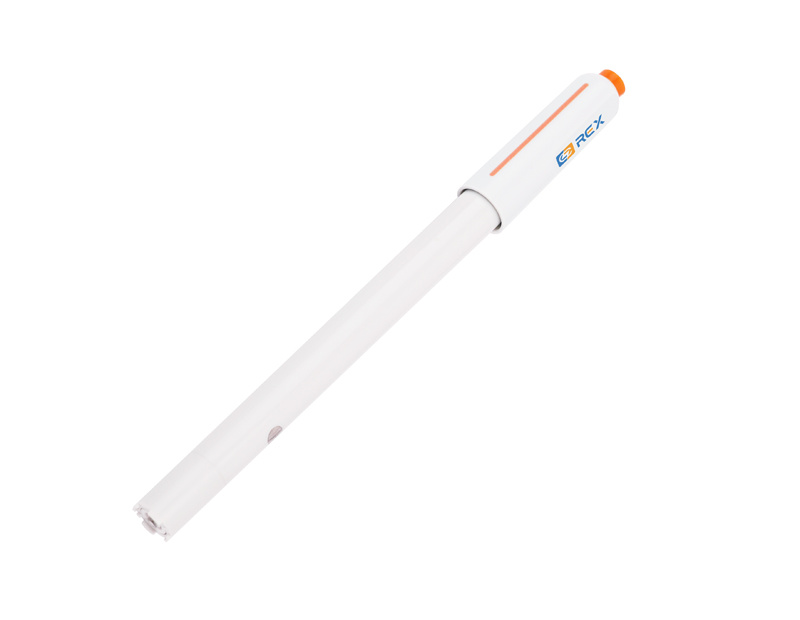

The DO-958-Q, DO-957-Q, DO-958-L are polarographic electrode.
Cooperated with 400F, 500T, 510T, 310F series meters, the DO-958-Q probe has extended the dissolved oxygen range to 50 mg/L.

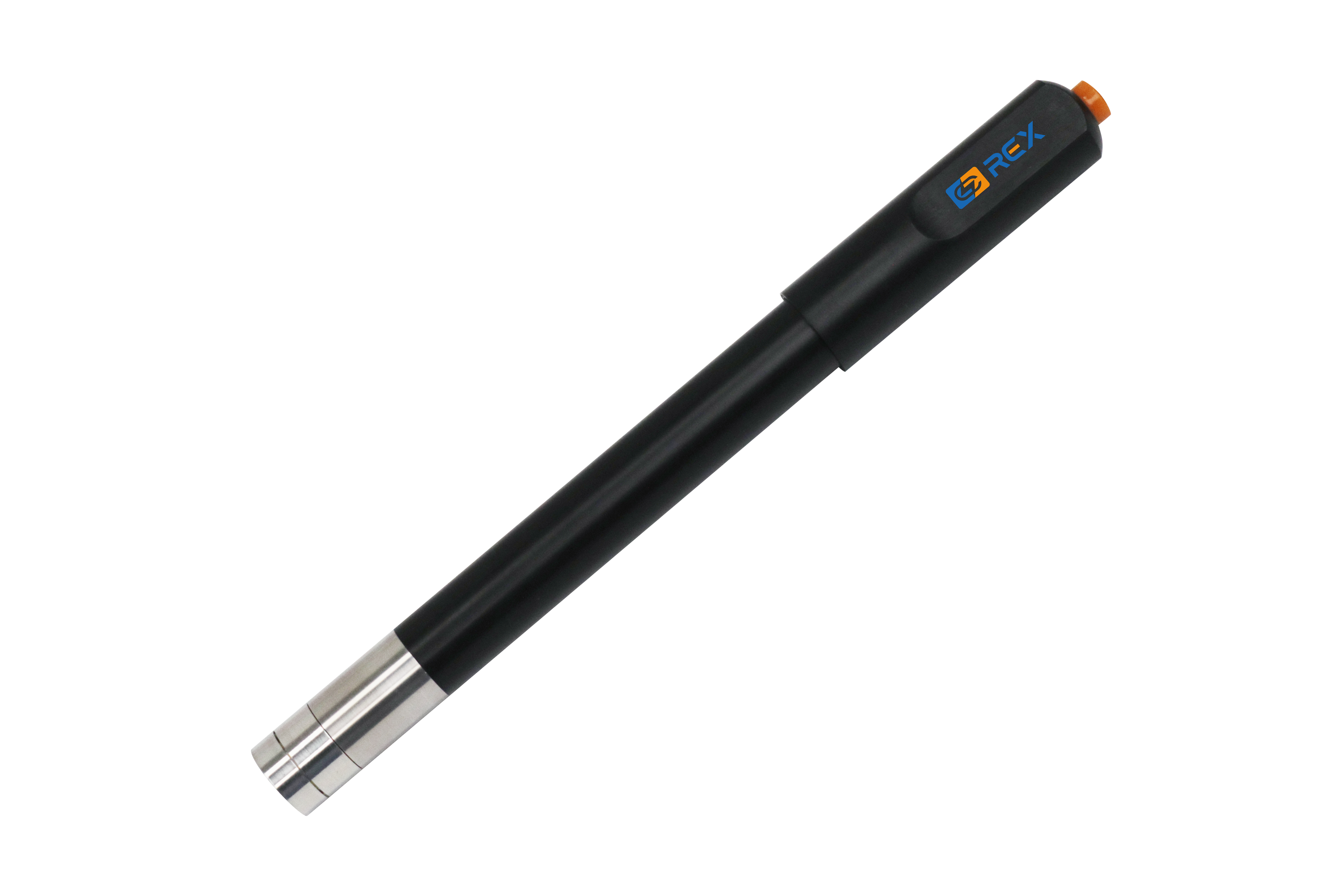

The DO-968-HC is optical electrode. It cooperated with DO511T DOmeters.
|
Model |
DO-957-Q |
DO-958-Q |
DO-958-L |
DO-968-HC |
|
Type |
Polarographic |
Polarographic |
Polarographic |
Optical |
|
DO Range |
0～20 mg/L |
0～20 mg/L |
0～20 mg/L |
0～20 mg/L |
|
Temp. Range |
5~40 |
5~40 |
5~40 |
0~50 |
|
Body material |
ABS |
ABS |
ABS |
POM & stainless steel |
|
Working Temp. (℃) |
5~40 |
5~40 |
5-40 |
0~50 |
|
Dimension (mm) |
Φ12×120 mm |
Φ12×120 mm |
Φ12×120 |
Φ16×150 mm |
|
Connector Type |
4-pin aviation |
4-pin aviation |
6-pin MiniDin |
6-pin aviation |
|
Cable |
1m |
1m |
1m |
3m |
|
Note |
DO210E |
0～50 mg/L（with 400F, 500T，510T，310F series） |
600L series |
DO511T |
|
Regeants & Accessories |
|
|
|
|
|
Zero Oxygen standard |
● |
● |
● |
● |
|
Dissolved Oxygen Electrolyte（100mL） |
● |
● |
● |
/ |
|
Membrane Cap |
DO-957 membrane cap |
DO-958 membrane cap |
DO-958 membrane cap |
968 membrane cap |
Characteristic of Polarographic Probe & Optical Probe
|
No. |
Polarographic Probe |
Optical Probe |
|
Polarization |
Required if just connected to meter (30-60 minutes) |
None required |
|
Stirring |
Required |
Not necessary |
|
Electrolyte |
Change as needed,~ every 2 months |
None required |
|
Membrane |
Change as needed,~ every 2 months |
Must be replaced every 365 days |
