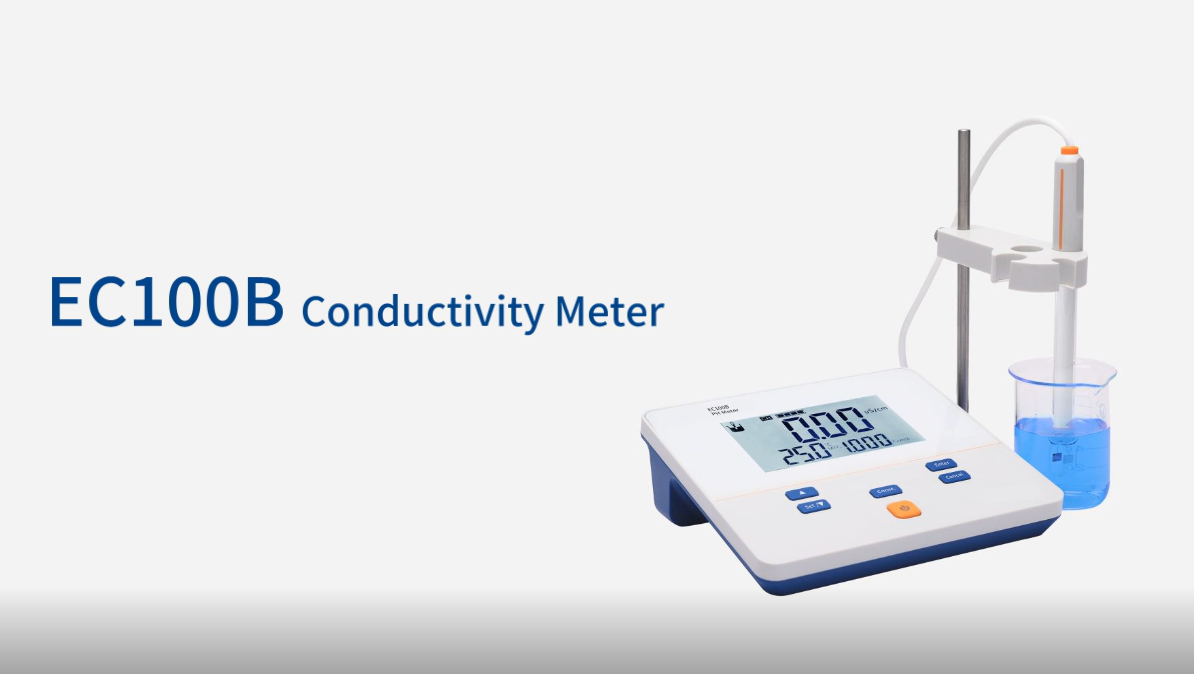

EC100B Conductivity Meter

Features

GENERAL FEATURES

  • LCD display screen, 6.0 inches.
  • Reset feature automatically resumes all settings back to factory default options.
  • IP54 waterproof.
  • Cell constant is settable.
  • Manual temperature compensation ensures accurate results.

Includes

  • DJS-1VC EC electrode
  • 1413μS/cm EC standard solution, 50ml, 1 vial
  • Electrode Stand

Specifications

Model

EC100B

Parameters

EC

Conductivity

Range

0.00 μS/cm to 100 mS/cm

Resolution

0.01 μS/cm minimum,

various with range selection

Accuracy

±1.5% FS

Reference Temperature

25 ºC

Measurement

Reading Mode

Continuous

Reading Prompts

Reading, Stable, Locked

Temp. Compensation

MTC

Inputs

Conductivity Probe

5-pin aviation connector

Display options

Backlight

Yes

Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off

IP Rating

IP54

General

Power

AC Adapter, 100-240V AC input, DC9V output

Dimensions

200×160×63 mm

Weight

600g (1.32 lb)
