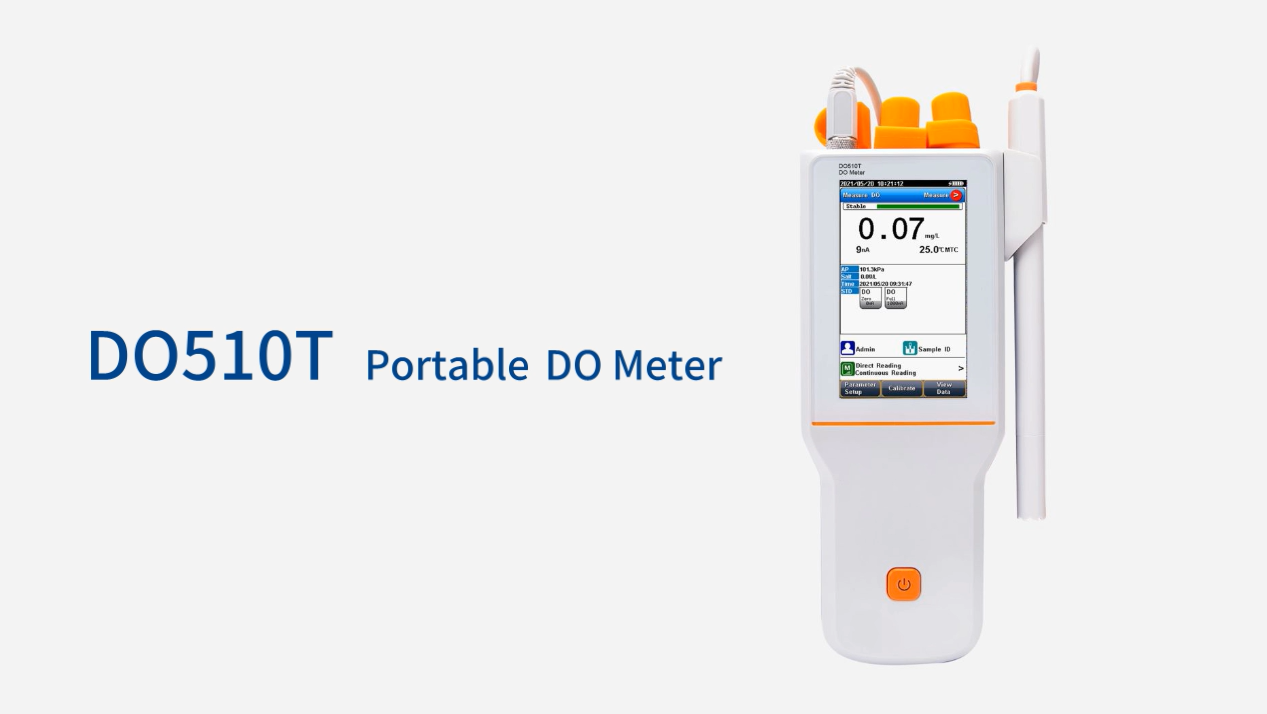

DO510T DO Meter / Portable DO Meter

Features

 GENERAL FEATURES

  • Color High contrast LCD touchscreen, 4.3 inches.
  • Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.
  • Multi-reading feature allows auto-read, timed-read and continuous-read.
  • Automatic/Manual temperature compensation ensures accurate results.
  • Auto-hold feature senses and locks the measurement endpoint.
  • Data Storage 1000 sets for each parameter (GLP-compliant).
  • Data analysis feature helps user review, compare and recalculate results.
  • Support for USB communication.
  • Auto-power off feature effectively extends the battery service life.
  • Reset feature automatically resumes all settings back to factory default options.
  • IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
  • Support for air-saturated water or zero oxygen calibration.
  • Auto barometric pressure compensation
  • Manual Salinity Factor Correction
  • Selectable pressure unit, including kPa, mbar, Torr, Atm.

 Includes

  • DO-958-Q polarographic DO electrode(zero oxygen calibration solution, dissolved oxygen electrolyte, 3 pcs electrode membrane cover)
  • Electrode holder
  • Silicone rubber case
  • Wristbands
  • Touch pen
  • Carrying case

Specifications

Model

DO510T

Parameters

DO/Temp(DO Saturation).

Dissolved

Oxygen Concentration

Sensor Type

Polarographic

Range

0.00 to 99.99 ppm

Resolution

0.01ppm

Accuracy

0.00~50.00)ppm±0.10ppm

50.0~99.99)ppm±0.50ppm

Calibration Reminder

Yes

Calibration Points

Air-saturated water or zero point

Barometric Compensation

Yes

Manual Salinity Factor Correction

Yes

DO Saturation

Range

(0.0 to 600.0)%

Resolution

0.10%

Accuracy

±2.0%

Temperature

Range

-10 to 135 ºC, 14 to 275 ºF

Unit

ºC, ºF

Resolution

0.1

Accuracy

±0.1ºC

Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts

Reading, Stable, Locked

Temp. Compensation

ATC, MTC

Data management

Data Storage

1000 Groups

GLP Features

Yes



DO with Temp. Probe

4-pin aviation connector

Outputs

USB

USB 2.0 flash memory device, PC, scanner

Display options

Backlight

Yes

Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off

IP Rating

IP65

Date and Time

Yes

General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

Dimensions

90×255×40 mm

Weight

500g (1.1 lb)
