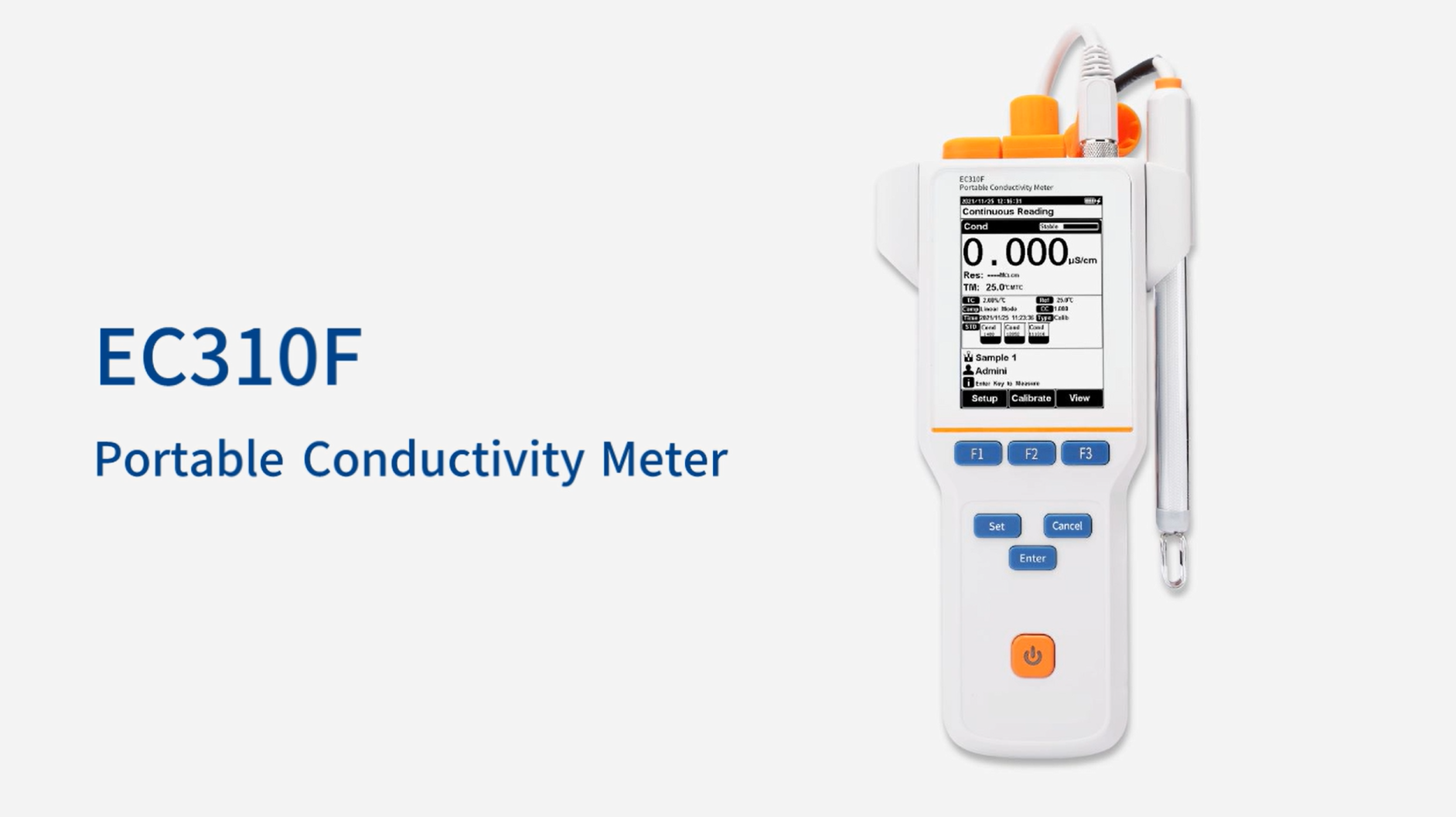

EC310F Conductivity Meter / Portable EC Meter

Features

 GENERAL FEATURES

  • LCD display screen, 3.5 inches.
  • Multi-reading feature allows auto-read, timed-read and continuous-read.
  • Automatic/Manual temperature compensation ensures accurate results.
  • Auto-hold feature senses and locks the measurement endpoint.
  • Data capacity of up to 500 sets for each parameter (GLP-compliant).
  • Support for USB communication.
  • Auto-power off feature effectively extends the battery service life.
  • Reset feature automatically resumes all settings back to factory default options.
  • IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
  • 1-3 points calibration with Standard Recognition.
  • Settable parameters, including cell constant, temperature compensation coefficient, and TDS factor.
  • Temperature compensation type (none, linear, pure water).

 Includes

  • DJS-1VTC EC electrode
  • 1413μS/cm EC standard solution, 50ml, 1 vial
  • Electrode holder
  • Silicone rubber case
  • Wristbands
  • Carrying Case

Specifications

Model

EC310F

Parameters

EC/Temp.(Resistivity/TDS/Sal.)

Conductivity

Range

0.000 μS/cm to 500 mS/cm

Resolution

0.001 μS/cm minimum,

various with range selection

Accuracy

±1.0% FS

Reference Temperature

20, 25 ºC

Calibration Points

Up to 3

Standard Recognition

84μS/cm, 1413μS/cm, 12.88mS/cm

Resistivity

Range

5.00 Ω·cm~20.00 MΩ·cm

Resolution

0.01 Ω·cm minimum

Accuracy

±1.0% FS

TDS

Range

0.00ppm~300ppt

Resolution

0.01ppm minimum, various with range selection

Accuracy

±1.0%FS

Salinity

Range

0.0~80.0 ppt

Resolution

0.1ppt

Accuracy

±2ppt

Temperature

Range

-5 to 110 ºC, 23 to 230 ºF

Unit

ºC, ºF

Resolution

0.1

Accuracy

±0.2ºC

Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts

Reading, Stable, Locked

Temp. Compensation

ATC, MTC

Data management

Data Storage

500 results each

GLP Features

Yes

Inputs

Conductivity with Temp. Probe

5-pin aviation connector

Outputs

USB

PC, printer

Display options

Backlight

Yes

Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off

IP Rating

IP65

Date and Time

Yes

General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

Dimensions

80×2235 mm

Weight

400g (0.88 lb)

Dimensions (Carton)

4133165 mm

Weight (Gross)

5 kg
