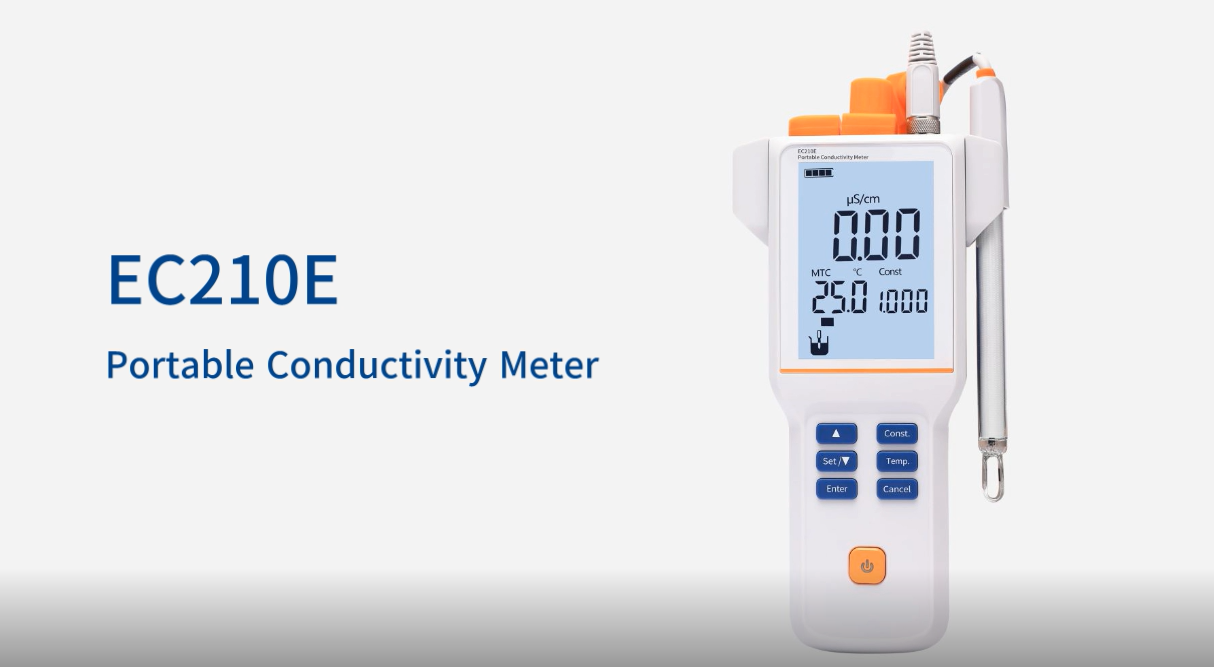

EC210E Conductivity Meter / Portable EC Meter

Features

 GENERAL FEATURES

  • LCD display screen, 3.5 inches.
  • Multi-reading feature allows auto-read and continuous-read.
  • Automatic/Manual temperature compensation ensures accurate results.
  • Auto-hold feature senses and locks the measurement endpoint.
  • Data capacity of up to 200 sets for each parameter.
  • Auto-power off feature effectively extends the battery service life.
  • Reset feature automatically resumes all settings back to factory default options.
  • IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
  • 1 point calibration with Standard Recognition.
  • Cell constant is settable
  • Automatic/manual temperature compensation ensures accurate results.

 Includes

  • DJS-1VTC EC electrode
  • 1413μS/cm EC standard solution, 50ml, 1 vial
  • Electrode holder
  • Silicone rubber case
  • Wristbands

Specifications

Model

EC210E

Parameters

EC/Temp.(TDS)

Conductivity

Range

0.00 μS/cm to 200 mS/cm

Resolution

0.01 μS/cm minimum,

various with range selection

Accuracy

±1.0% FS

Reference Temperature

25 ºC

Calibration Points

Up to 1

Standard Recognition

84μS/cm, 1413μS/cm, 12.88mS/cm

TDS

Range

0.00 ppm~300 ppt

Resolution

0.01 ppm minimum, various with range selection

Accuracy

±1.0%FS

Temperature

Range

-5 to 110 ºC

Unit

ºC

Resolution

0.1ºC

Accuracy

±0.2ºC

Measurement

Reading Mode

Auto Read, Continuous

Reading Prompts

Reading, Stable, Locked

Temp. Compensation

ATC, MTC

Data management

Data Storage

200 results each

Inputs

Conductivity with Temp. Probe

5-pin aviation connector

Display options

Backlight

Yes

Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off

IP Rating

IP65

General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

Dimensions

80×255×35 mm

Weight

400g (0.88 lb)
