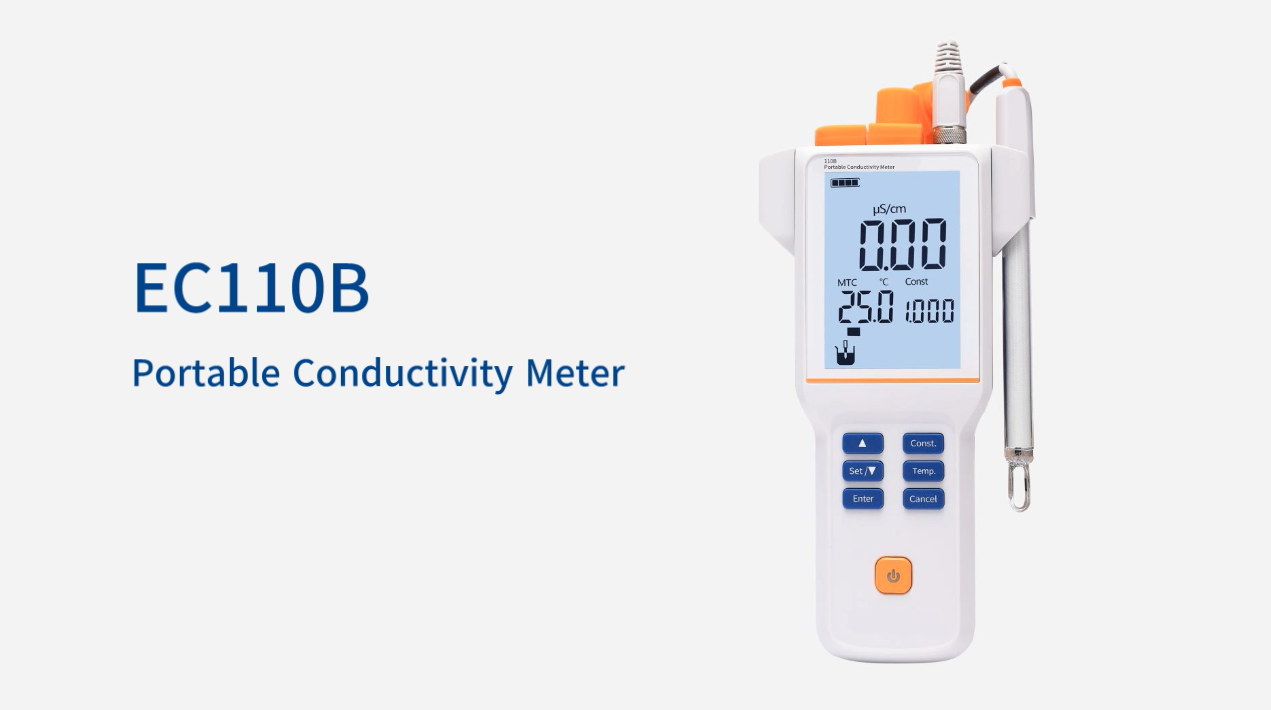

EC110B Conductivity Meter / Portable EC Meter

Features

 GENERAL FEATURES

  • LCD display screen, 3.5 inches.
  • Reset feature automatically resumes all settings back to factory default options.
  • Auto-power off feature effectively extends the battery service life.
  • IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
  • Cell constant is settable
  • Manual temperature compensation ensures accurate results.

 Includes

  • DJS-1VC EC electrode
  • 1413μS/cm EC standard solution, 50ml, 1 vial
  • Electrode holder
  • Silicone rubber case
  • Wristbands

Specifications

Model

EC110B

Parameters

EC

Conductivity

Range

0.00 μS/cm to 100 mS/cm

Resolution

0.01 μS/cm minimum,

various with range selection

Accuracy

±1.0% FS

Reference Temperature

25 ºC

Measurement

Reading Mode

Continuous

Reading Prompts

Reading, Stable

Temp. Compensation

MTC

Inputs

Conductivity

5-pin aviation connector

Display options

Backlight

Yes

Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off

IP Rating

IP65

General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

Dimensions

80×255×35 mm

Weight

400g (0.88 lb)

Videos

Learn More >>

EC110B Conductivity Meter operation, measurement, calibration and maintenance
